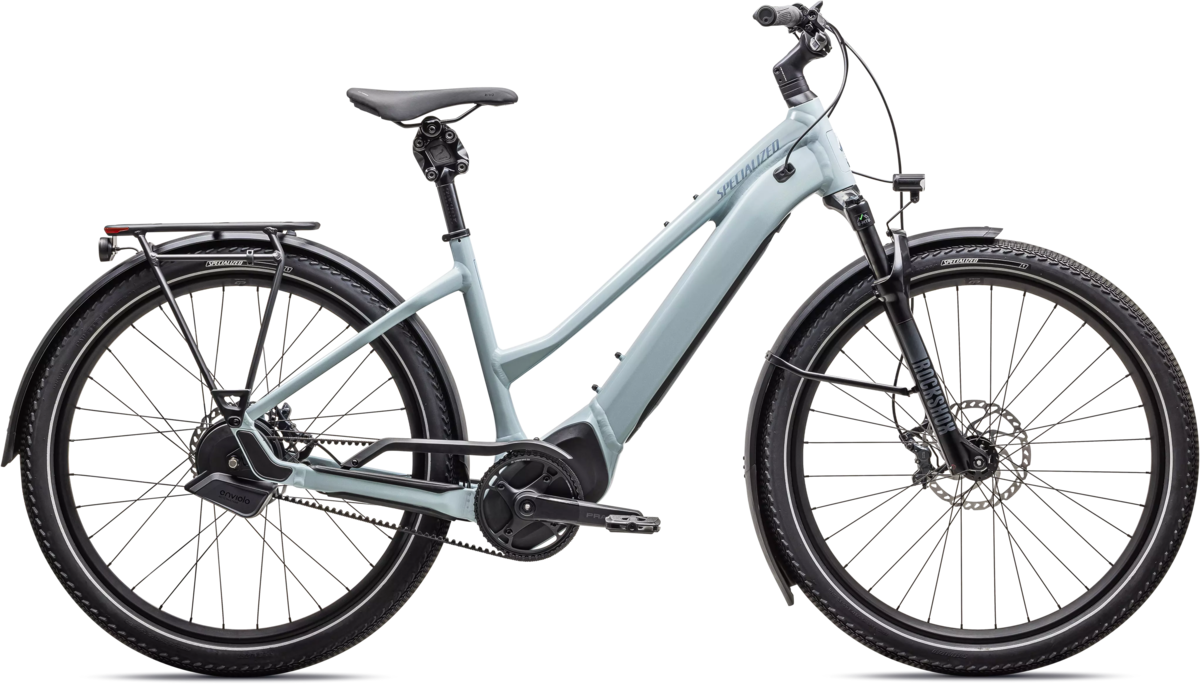

Specialized Turbo Vado 5.0 IGH Step-Through

Specialized Turbo Vado 5.0 IGH Step-Through
  • Color: Satin Seafoam/Lapis Pearl/Glacial Metallic
Color: Satin Seafoam/Lapis Pearl/Glacial Metallic
Size: Medium
Wheel Size: 650b
Please select options Unavailable
Sorry, this item is currently not available. Please check back.

Details

Consider Vado your high-performance transportation bike, getting you where you’re going with an unmatched combination of speed, reliability, and confidence. Whether you load it up with your stuff, or jump on and go, commute to work, or ride to the gym, Vado’s full power and huge range will get you from ‘point A’ to ‘point B’ ASAP.

The Specialized Vado has everything you need for e-powered transport. It brings a balanced nature to the way it handles and superior levels of comfort. This is a true class leader of its type.

TURBO: The heart of the Vado is its Turbo technology, an advanced and integrated electric bike system that delivers an unequaled combination of power, natural feel, anti-theft functions, training tips, and a full-function bike computer.

POWERFUL: It’s you, just faster — it’s 4x You. The Turbo Full Power system senses the force you apply to the pedals and naturally quadruples it for an experience that makes getting up any hill or to any destination no sweat. Literally.

COMFORTABLE AND CONFIDENT: Body position and handling are optimized to deliver unsurpassed riding comfort, confidence, and control. Powerful hydraulic disc brakes reign in your speed, while larger tires provide maximum traction for turning and stopping.

SMOOTH: Stay comfortable in the saddle with an 80mm front suspension fork, higher volume tires, and a plush suspension seat post that smooths harsh bumps from points A to B.

SECURE: Vado has anti-theft lock built right into the bike. Prevent would-be bike thieves by disabling the motor with a press of a button so no one can turn on the motor without your phone connected to the Specialized app or your personalized pin. The Vado’s battery locks in the bike or can be easily taken with you. And if anyone tries to move your bike an alarm will sound. Beat it, thieves.

The speed limit at which the motor will stop supporting may vary significantly by region and is based on local requirements. It may also affect range: a higher speed limit may result in less range.

- Turbo Full Power 2.2 motor and 710Wh battery offer an unparalleled riding experience, providing a smooth, seamless, and shockingly quiet amplification of your efforts, up to 28 mph. The integrated controller responds to your pedal inputs resulting in intuitive amplification of your efforts with an incredibly natural feel.

- MasterMind and Specialized app - The MasterMind display reveals all relevant info about your ride and allows real-time tuning of support levels. MasterMind seamlessly integrates with the Specialized app for range optimization tools, advanced tuning, on-ride diagnostics, and more.

- The enviolo AUTOMATiQ Internal Gear Hub (IGH) stepless shifting technology automatically shifts gears based on a rider’s pedal pace, taking changes in the surroundings into account. By selecting a preferred cadence or pedal pace, it allows riders to “set it and forget it”, adding an extra layer of safety and comfort for riders.

- Proven Smooth Efficiency - We designed a custom testing mechanism to analyze bumps at even the smallest frequency to increase comfort and vision. That precision, paired with a suspended seatpost, higher volume tires, and an 80 mm suspension fork, will flatten roads before your eyes.

- Turbo System Lock - Use the Specialized app to disable your bike’s motor and activate the motion sensor alarm. Once locked, the motor cannot be enabled again except by the owner.

- Garmin Radar - An integrated Garmin Radar sensor lets you know when traffic is coming up behind you. Garmin’s Radar technology can detect cars up to 140 meters away. MasterMind will give riders a visual, audible, and haptic alert of an approaching vehicle’s relative distance and rate of speed.

- Fully Integrated Removable and Lockable Downtube Battery - Easy to charge, easy to secure.

- Equipped with DRYTECH Fenders, LED front and rear lights, and 27kg capacity rear HD Rack. The rear rack is compatible with child bike seats, and the bike is also rated to pull a thru-axle trailer.

- Long-Range - With a ride-anywhere range, go up to 62 miles (100 km) or 4.5 hours on a single charge (eco mode).

Frame SizeSMLXL
Crank Length (mm/in) 170mm (6.7") 170mm (6.7") 170mm (6.7") 170mm (6.7")
Handlebar Width (mm/in) 680mm (26.8") 680mm (26.8") 680mm (26.8") 680mm (26.8")
Stem Length (mm/in) 60mm (2.4") 60mm (2.4") 75mm (3.0") 75mm (3.0")
Saddle Width (mm/in) 155mm (6.1") 155mm (6.1") 155mm (6.1") 155mm (6.1")
Seatpost Length (mm/in) 375mm (14.8") 375mm (14.8") 375mm (14.8") 375mm (14.8")
Stack (mm/in) 625mm (24.6") 639mm (25.2") 652mm (25.7") 676mm (26.6")
Reach (mm/in) 423mm (16.7") 444mm (17.5") 464mm (18.3") 481mm (18.9")
Headtube Length (mm/in) 135mm (5.3") 150mm (5.9") 165mm (6.5") 190mm (7.5")
Headtube Angle (degrees) 68° 68° 68° 68°
BB Height (mm/in) 285mm (11.2") 285mm (11.2") 285mm (11.2") 285mm (11.2")
BB Drop (mm/in) 70mm (2.8") 70mm (2.8") 70mm (2.8") 70mm (2.8")
Trail (mm/in) 96mm (3.8") 96mm (3.8") 96mm (3.8") 96mm (3.8")
Fork Length (mm/in) 480mm (18.9") 480mm (18.9") 480mm (18.9") 480mm (18.9")
Fork Rake/Offset (mm/in) 44mm (1.7") 44mm (1.7") 44mm (1.7") 44mm (1.7")
Front Center (mm/in) 699mm (27.5") 724mm (28.5") 750mm (29.5") 777mm (30.6")
Chainstay Length (mm/in) 470mm (18.5") 470mm (18.5") 470mm (18.5") 470mm (18.5")
Wheelbase (mm/in) 1160mm (45.7") 1186mm (46.7") 1212mm (47.7") 1239mm (48.8")
Toptube Length (mm/in) 585mm (23.0") 615mm (24.2") 645mm (25.4") 675mm (26.6")
Bike Standover Height (mm/in) 618mm (24.3") 617mm (24.3") 617mm (24.3") 626mm (24.6")
Seat Tube Length (mm/in) 400mm (15.7") 450mm (17.7") 460mm (18.1") 500mm (19.7")
Seat Tube Angle (degrees) 75.5° 75° 74.5° 74°
Frame SizeInchesCM
S 5'1" - 5'5" 158 - 165
M 5'5" - 5'10" 165 - 178
L 5'10" - 6'1" 178 - 185
XL 6'1" - 6'4" 185 - 193

Specs

Frame E5 Aluminum, bottom bracket motor mount, fully integrated &lockable downtube battery, internal cable routing, lock and front rack mount, sliding dropout
Fork Rockshox Recon Silver RL, 80mm travel, Motion-Control, fender-mounts
Hubs Front: Specialized alloy front hub disc, sealed cardridge bearings, 6-bolt, 15x110mm thru-axle, 32h Rear: enviolo Heavy Duty, 380% range, 6-bolt, 10x135mm, 32h
Tires Front: Pathfinder Sport Reflect, 650Bx2.3 Rear: Pathfinder Sport Reflect, 650Bx2.3
Crankset Custom alloy forged crankarms, 170mm
Chainrings Gates Carbon Drive CDX 50T chainring, black
Rear Derailleur Automatic Hub Interface, AHI-PRO-40T-OE-1, enviolo Netherlands,17NM, 40T Spline Compatible
Cassette/Freewheel Gates Carbon Drive CDX 22t sprocket, silver
Chain Gates Carbon Drive CDX 122t belt, black
Brakes Front: Shimano 4 pistons, CUES, BL-U8000, Br-U8020, Sm-Ma-F180P/P2 Rear: Shimano 4 pistons, CUES,BL-U8000, Br-U8020
Handlebars Specialized, alloy, 15-degree backsweep, 46mm rise, 31.8mm
Tape/Grips ERGON, GA30-S Custom, 134.8mm Length
Stem Specialized Flowset, 3D-forged alloy, 20-degree rise, 31.8mm clamp
Seatpost Cane Creek, Thudbuster St 30.9 mm
Saddle Bridge Sport, Steel rails, 155mm
Accessories & Extras Specialized DRYTECH fenders, 65mm width, aluminum fenderstay, Handlebar rear view mirror, aluminum, Integrated Garmin Radar, with custom information displayed directly on the Mastermind TCD, LEZYNE Power StVZO E500+, 500 Lumens, Spanninga, Stvzo, Commuter Glow With Brake XEr, Specialized Commuter w/ grip tape & reflectors, Specialized brass bell, Specialized kickstand, 40mm mount, Specialized rack, MIK HD interface, built-in pannier mounts, 27kg max load, and Turbo System Lock
Motor Specialized 2.2, 90Nm torque, custom tuned motor, 250W nominal
Battery Specialized U2-710, integrated battery, state of charge display, 710Wh, UL
Controller/Display MasterMind TCD, w/handlebar remote, built-in anti-theft feature, Bluetooth® connectivity, customizable display pages
Charger Custom charger, 42V4A w/ Rosenberger plug, 100-240V

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Satin Seafoam/Lapis Pearl/Glacial Metallic / Medium / 650b 196625186585 95025-4003U 210000028888
